12 of 41 products
12
Name
51100
A&S

51100

  • Inner Ø
    10 mm / 0.394 in
  • Outer Ø
    24 mm / 0.945 in
  • Width
    9 mm / 0.354 in
  • Weight
    0.02 kg / 0.04 lb
51101
A&S

51101

  • Inner Ø
    12 mm / 0.472 in
  • Outer Ø
    26 mm / 1.024 in
  • Width
    9 mm / 0.354 in
  • Weight
    0.022 kg / 0.05 lb
51102
A&S

51102

  • Inner Ø
    15 mm / 0.591 in
  • Outer Ø
    28 mm / 1.102 in
  • Width
    9 mm / 0.354 in
  • Weight
    0.023 kg / 0.05 lb
51103
A&S

51103

  • Inner Ø
    17 mm / 0.669 in
  • Outer Ø
    30 mm / 1.181 in
  • Width
    9 mm / 0.354 in
  • Weight
    0.025 kg / 0.06 lb
51104
A&S

51104

  • Inner Ø
    20 mm / 0.787 in
  • Outer Ø
    35 mm / 1.378 in
  • Width
    10 mm / 0.394 in
  • Weight
    0.037 kg / 0.08 lb
51105
A&S

51105

  • Inner Ø
    25 mm / 0.984 in
  • Outer Ø
    42 mm / 1.654 in
  • Width
    11 mm / 0.433 in
  • Weight
    0.056 kg / 0.12 lb
51106
A&S

51106

  • Inner Ø
    30 mm / 1.181 in
  • Outer Ø
    47 mm / 1.85 in
  • Width
    11 mm / 0.433 in
  • Weight
    0.063 kg / 0.14 lb
51107
A&S

51107

  • Inner Ø
    35 mm / 1.378 in
  • Outer Ø
    52 mm / 2.047 in
  • Width
    12 mm / 0.472 in
  • Weight
    0.08 kg / 0.18 lb
51108
A&S

51108

  • Inner Ø
    40 mm / 1.575 in
  • Outer Ø
    60 mm / 2.362 in
  • Width
    13 mm / 0.512 in
  • Weight
    0.12 kg / 0.27 lb
51109
A&S

51109

  • Inner Ø
    45 mm / 1.772 in
  • Outer Ø
    65 mm / 2.559 in
  • Width
    14 mm / 0.551 in
  • Weight
    0.14 kg / 0.31 lb
51110
A&S

51110

  • Inner Ø
    50 mm / 1.969 in
  • Outer Ø
    70 mm / 2.756 in
  • Width
    14 mm / 0.551 in
  • Weight
    0.16 kg / 0.35 lb
51111
A&S

51111

  • Inner Ø
    55 mm / 2.165 in
  • Outer Ø
    78 mm / 3.071 in
  • Width
    16 mm / 0.63 in
  • Weight
    0.23 kg / 0.51 lb
12 of 41 products
12
Name

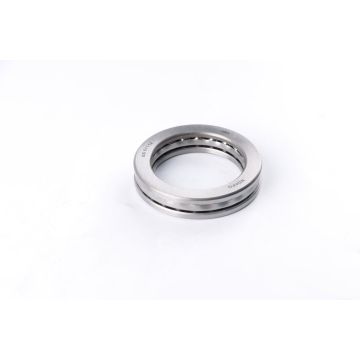

Thrust ball bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately.
