12 of 602 products
12
Name
81108 TN
A&S

81108 TN

  • Inner Ø
    40 mm / 1.575 in
  • Outer Ø
    60 mm / 2.362 in
  • Width
    13 mm / 0.512 in
  • Weight
    0.32 kg / 0.71 lb
M 1015 DAH
A&S

M 1015 DAH

  • Inner Ø
    104.93 mm / 4.094 in
  • Outer Ø
    115.057 mm / 4.528 in
  • Width
    20 mm / 0.787 in
  • Weight
    0.28 kg / 0.62 lb
M 1015 EAHX
A&S

M 1015 EAHX

  • Inner Ø
    85.217 mm / 3.346 in
  • Outer Ø
    115 mm / 4.528 in
  • Width
    20 mm / 0.787 in
  • Weight
    0.2 kg / 0.44 lb

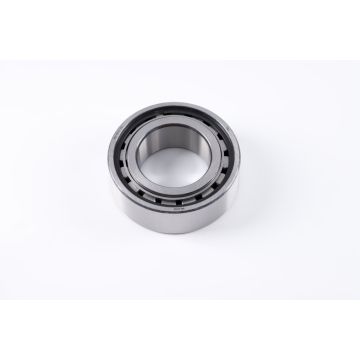

MA 1205 TV
A&S

MA 1205 TV

  • Inner Ø
    25 mm / 0.984 in
  • Outer Ø
    52 mm / 2.047 in
  • Width
    15 mm / 0.591 in
  • Weight
    0.152 kg / 0.34 lb

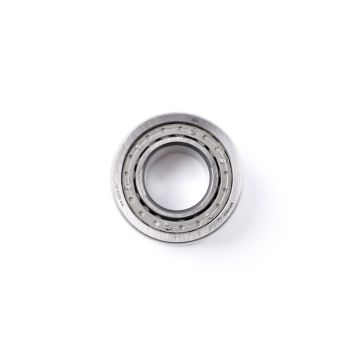

MA 1206 EL
A&S

MA 1206 EL

  • Inner Ø
    30 mm / 1.181 in
  • Outer Ø
    62 mm / 2.441 in
  • Width
    16 mm / 0.63 in
  • Weight
    0.242 kg / 0.53 lb
MA 1208 EL
A&S

MA 1208 EL

  • Inner Ø
    40 mm / 1.575 in
  • Outer Ø
    80 mm / 3.15 in
  • Width
    18 mm / 0.709 in
  • Weight
    0.37 kg / 0.82 lb
MA 1210 EL
A&S

MA 1210 EL

  • Inner Ø
    50 mm / 1.969 in
  • Outer Ø
    90 mm / 3.543 in
  • Width
    20 mm / 0.787 in
  • Weight
    0.52 kg / 1.15 lb
MA 1212 EL
A&S

MA 1212 EL

  • Inner Ø
    60 mm / 2.362 in
  • Outer Ø
    110 mm / 4.331 in
  • Width
    22 mm / 0.866 in
  • Weight
    0.96 kg / 2.12 lb
MA 1213 EL
A&S

MA 1213 EL

  • Inner Ø
    65 mm / 2.559 in
  • Outer Ø
    120 mm / 4.724 in
  • Width
    23 mm / 0.906 in
  • Weight
    1.217 kg / 2.68 lb
MA 1214 EL
A&S

MA 1214 EL

  • Inner Ø
    70 mm / 2.756 in
  • Outer Ø
    125 mm / 4.921 in
  • Width
    24 mm / 0.945 in
  • Weight
    1.322 kg / 2.92 lb
MA 1215 EL
A&S

MA 1215 EL

  • Inner Ø
    75 mm / 2.953 in
  • Outer Ø
    130 mm / 5.118 in
  • Width
    25 mm / 0.984 in
  • Weight
    1.444 kg / 3.18 lb
MA 1216 EL
A&S

MA 1216 EL

  • Inner Ø
    80 mm / 3.15 in
  • Outer Ø
    140 mm / 5.512 in
  • Width
    26 mm / 1.024 in
  • Weight
    1.76 kg / 3.88 lb
12 of 602 products
12
Name

Standard Fersa cylindrical bearings are single row. Depending on its internal design, there are 4 product families (N, NJ, NU, NUP) able to detach the inner or outer ring depending on the type.

Depending on the design type, the rollers operate guided between the flanges of the outer and/or inner rings.
