A&S
COLLAR U 399-A
-
Inner Ø39.57 mm / 1.558 in
-
Outer Ø58.5 mm / 2.303 in
-
Width12.82 mm / 0.505 in
-
Weight0.145 kg / 0.32 lb
- Availability:
- Availability:
A&S
COLLAR U 497-C
-
Inner Ø44.86 mm / 1.766 in
-
Outer Ø61 mm / 2.402 in
-
Width12.55 mm / 0.494 in
-
Weight0.224 kg / 0.49 lb
- Availability:
- Availability:
FERSA
U 298/U 261 L
-
Inner Ø34.987 mm / 1.377 in
-
Outer Ø64.975 mm / 2.558 in
-
Width18.1 mm / 0.713 in
-
Weight0.245 kg / 0.54 lb
- Availability:
- Availability:

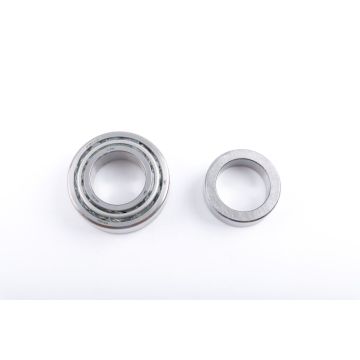

FERSA
U 298/U 261 L-C
-
Inner Ø34.987 mm / 1.377 in
-
Outer Ø64.975 mm / 2.558 in
-
Width33.8 mm / 1.331 in
-
Weight0.358 kg / 0.79 lb
- Availability:
- Availability:
A&S
U 298/U 261 L-C
-
Inner Ø35 mm / 1.378 in
-
Outer Ø65 mm / 2.559 in
-
Width20.6 mm / 0.811 in
-
Weight0.358 kg / 0.79 lb
- Availability:
- Availability:
FERSA
U 399/U 360 L
-
Inner Ø39.688 mm / 1.563 in
-
Outer Ø73.025 mm / 2.875 in
-
Width19.395 mm / 0.764 in
-
Weight0.34 kg / 0.75 lb
- Availability:
- Availability:
A&S
U 399/U 360 L
-
Inner Ø39.688 mm / 1.563 in
-
Outer Ø73.025 mm / 2.875 in
-
Width19.395 mm / 0.764 in
-
Weight0.35 kg / 0.77 lb
- Availability:
- Availability:
A&S
U 399/U 360 L-A
-
Inner Ø39.689 mm / 1.563 in
-
Outer Ø73.025 mm / 2.875 in
-
Width22.098 mm / 0.87 in
-
Weight0.485 kg / 1.07 lb
- Availability:
- Availability:
FERSA
U 399/U 365 L
-
Inner Ø39.688 mm / 1.563 in
-
Outer Ø79.967 mm / 3.148 in
-
Width19.395 mm / 0.764 in
-
Weight0.34 kg / 0.75 lb
- Availability:
- Availability:
A&S
U 399/U 365 L
-
Inner Ø39.69 mm / 1.563 in
-
Outer Ø79.97 mm / 3.148 in
-
Width19.4 mm / 0.764 in
-
Weight0.34 kg / 0.75 lb
- Availability:
- Availability:
A&S
U 399/U 365 L-C
-
Inner Ø39.688 mm / 1.563 in
-
Outer Ø80 mm / 3.15 in
-
Width40.6 mm / 1.598 in
-
Weight0.51 kg / 1.12 lb
- Availability:
- Availability:
FERSA
U 497/U 460 L
-
Inner Ø44.987 mm / 1.771 in
-
Outer Ø79.975 mm / 3.149 in
-
Width24 mm / 0.945 in
-
Weight0.478 kg / 1.05 lb
- Availability:
- Availability:
The U type tapered roller bearings are an exception within the conventional tapered roller bearings since this is a compact unit type that includes the grease and is pre-regulated without having to install an opposite bearing. Furthermore, they have a flange on the outer ring that is fastened axially in the application once the bearing is mounted.
